KOMTESTDiesel Test Bench Manufacturer
CR Pump Standard & Optional SetsKOMTEST technical documentation
20 pages204 items
KOMTESTDiesel Test Bench Manufacturer
01

CR Pump Adapter Sets

CR Pump Standard & Optional Sets

Standard, oil-required and optional common rail pump fixture sets imported from the KOMTEST adapter workbook and supplemental pump optional workbooks.
StandardCR PUMP STANDARD SET
StandardQty 1Row 4
CF 104

F / 050

StandardQty 1Row 5
CF 106

F / 068

StandardQty 1Row 6
CF 108

F / 080

StandardRow 7
CF 108-1

F / 080 / 80 X 60,5 STD

StandardQty 1Row 8
CF 110

F / 107

StandardQty 1Row 9
CK 204

K / 020

StandardQty 1Row 10
CK 208

K / 022

StandardQty 1Row 11
CK 212

K / 025

StandardQty 1Row 12
CK 222

S / 008

StandardQty 1Row 13
CK 224

S / 009

StandardQty 1Row 14
CK 226

S / 010

StandardQty 1Row 21
CK 230

K.C.T.

StandardQty 1Row 22
CK 234

K.A.

StandardQty 1Row 23
CK 236

S.S. / M 14

StandardQty 1Row 24
CK 238

S.S. / M 16

No image
StandardQty 1Row 25
CK 240

S.S. / M 18

StandardQty 1Row 26
CK 246

S.V. / M 12

StandardQty 1Row 27
CK 248

S.V. / M 10

StandardQty 1Row 28
CA 130

F.A. / 068-3 / SIEMENS

StandardQty 1Row 29
CA 138

F.A. / 068-4 / DELPHI SIEMENS

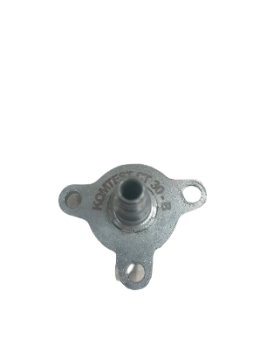

StandardQty 1Row 30
CT 30-B

BOSCH - 1

StandardQty 1Row 31

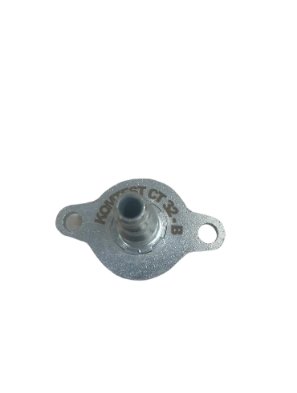

CT 32-B

BOSCH - 2

StandardQty 1Row 32
CT 36-BT

BOSCH - 4

StandardQty 1Row 33

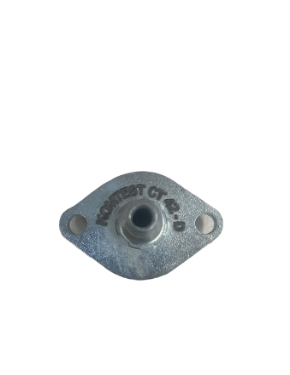

CT 42-D

DENSO 1

KOMTESTDiesel Test Bench Manufacturer01 / 20
KOMTESTDiesel Test Bench Manufacturer
02

CR Pump Adapter Sets · Standard set

CR PUMP STANDARD SET

24 listed items in this set group.
StandardCR PUMP STANDARD SET

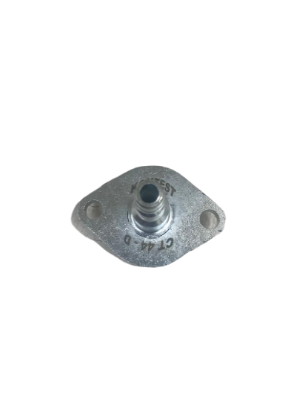

StandardQty 1Row 34
CT 44-D

DENSO 2

StandardQty 1Row 35
CT 46-SY

SIEMENS 1

StandardQty 1Row 36
CT 48-SL

SIEMENS 2

StandardQty 1Row 37
CT 50-SF

SIEMENS 3

StandardQty 1Row 38
CT 52-SD

SIEMENS DRV

StandardQty 1Row 39
CT 54-B

BOSCH 5

StandardQty 1Row 40
CT 56-D

DELPHI UNIVERSAL

StandardQty 2Row 41
CR 408

16.1 X 12

StandardQty 2Row 42
CR 410

14 X 12

StandardQty 4Row 43
CR 418

M 12 UNIVERSAL

StandardQty 4Row 44

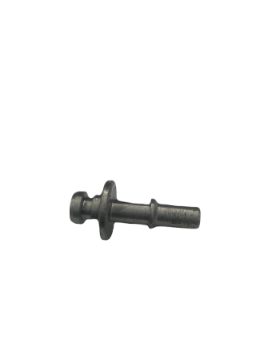

CR 422

M 14 UNIVERSAL

StandardQty 2Row 45
CR 425

CP 1 IN / OUT

StandardQty 1Row 46

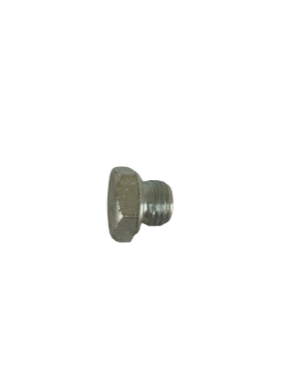

CR 426

M 12 UNIVERSAL

StandardQty 1Row 47
CR 427

M 14 UNIVERSAL

StandardQty 2Row 48
CH 010

10X8 8 MM 62 CM

StandardQty 2Row 49
CH 011

10 MM 10X8 62 CM

StandardQty 2Row 50
CH 012

8 MM 10X8 62 CM

StandardQty 2Row 51
CH 013

12 MM 10X8 62 CM

StandardQty 2Row 52
CH 014

14 MM 10X8 62 CM

StandardQty 1Row 53
CH 015

8 X 6 62 CM - T

StandardQty 1Row 54
CH 016

8 X 6 62 CM

+1
StandardQty 1Row 55
CH 017

10X16 62 CM

StandardQty 1Row 56
CH 018

18X14 62 CM

StandardQty 1Row 57
CH 019

18X14 25X8 CM

KOMTESTDiesel Test Bench Manufacturer02 / 20
KOMTESTDiesel Test Bench Manufacturer
03

CR Pump Adapter Sets · Standard set

CR PUMP STANDARD SET

18 listed items in this set group.
StandardCR PUMP STANDARD SET
StandardQty 1Row 58
CH 020

12 MM 10X8 25 CM

StandardQty 1Row 59
CH 021

14 MM 10X8 25 CM

StandardQty 1Row 60
CH 022

14 X 12 MM 10X8 35 CM

StandardQty 2Row 61
PR 014

14 X 12 75 CM

StandardQty 1Row 62
EB 102

BOSCH

StandardQty 1Row 63

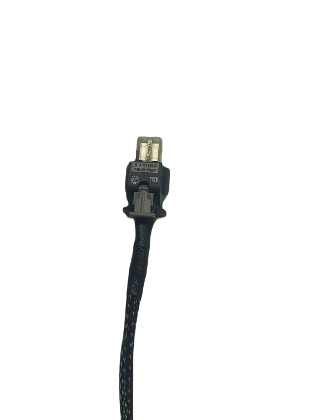

PB 126

BOSCH TEMPERATURE

StandardQty 1Row 64

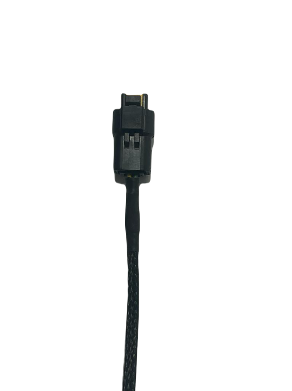

PD 130

DELPHI TEMPERATURE

StandardQty 1Row 65
PD 132

DELPHI SIEMENS TEMPERATURE

StandardQty 2Row 66
PD 142

DELPHI SIEMENS IMV / SCV

StandardQty 4Row 67
M10 X 3,5 CM

M10 X 3,5 CM

StandardQty 3Row 68
M8 X 3,5 CM

M8 X 3,5 CM

StandardQty 3Row 69
M8 X 5 CM

M8 X 5 CM

StandardQty 3Row 70
M8 X S

M8 X S

StandardQty 2Row 71
M8 X 8 CM HEX SOCKET

M8 X 8 CM HEX SOCKET

StandardQty 2Row 72
M8 X 6,5 CM HEX SOCKET

M8 X 6,5 CM HEX SOCKET

StandardQty 2Row 73
M8 X 3,5 CM HEX SOCKET

M8 X 3,5 CM HEX SOCKET

StandardQty 2Row 74
M8 X 3 CM HEX SOCKET

M8 X 3 CM HEX SOCKET

StandardQty 2Row 75
M8 X 2,5 CM HEX SOCKET

M8 X 2,5 CM HEX SOCKET

KOMTESTDiesel Test Bench Manufacturer03 / 20
KOMTESTDiesel Test Bench Manufacturer
04

CR Pump Adapter Sets · Standard set

CR PUMP OIL INCLUDED SET

10 listed items in this set group.
StandardCR PUMP OIL INCLUDED SET
StandardQty 1Row 79
CF 120

F / 107

StandardQty 1Row 80
CK 214

K / 030

StandardQty 1Row 81
CK 218

K / 025

StandardQty 1Row 82
CK 242

S.S. / M 20

StandardQty 1Row 83
SET 83

1/8 8MM

StandardQty 1Row 84
SET 84

1/4 8MM

StandardQty 1Row 85
CR 432

M 14

StandardQty 2Row 86
PR 016

14 X 14 75 CM

StandardQty 1Row 87
PD 134

BOSCH SPEED

StandardQty 1Row 88
EB 102

BOSCH SELONOID PIEZZO

KOMTESTDiesel Test Bench Manufacturer04 / 20
KOMTESTDiesel Test Bench Manufacturer
05

CR Pump Adapter Sets · Optional set

CR PUMP OPTIONALS

24 listed items in this set group.
OptionalCR PUMP OPTIONALS
OptionalQty 1Row 112
CF 112

F. / 109

OptionalQty 1Row 113
CF 114

F.O. / 050 / CB 18 60 X 72 X 7

OptionalQty 1Row 114
CF 116

F.O. / 068 / CAT 60 X 72 X 7

OptionalQty 1Row 115
CF 118

F.O. / 085 / CB 28 CUMMINS 60 X 72 X 7

OptionalQty 1Row 116
CF 120

F.O. / 107 / CP2 CP3 CUMMINS 60 X 72 X 7

OptionalQty 1Row 117
CK 214

K / 030

OptionalQty 1Row 118
CK 216

K / 035

OptionalQty 1Row 119
CK 218

K / 025

OptionalQty 1Row 120
CK 242

S.S. / M 20

OptionalQty 1Row 121
CK 244

S.S. / M 24

OptionalQty 1Row 122
CT 34-B

CP 5

OptionalQty 2Row 123
CR 402

19 X 14

OptionalQty 2Row 124
CR 404

19 X 14

OptionalQty 2Row 125
CR 406

16 X 14

OptionalQty 2Row 126
CR 414

14 X 16

OptionalQty 2Row 127
CR 416

14 X 18

OptionalQty 1Row 128
CR 420

M 12

OptionalQty 1Row 129
CR 424

M 14

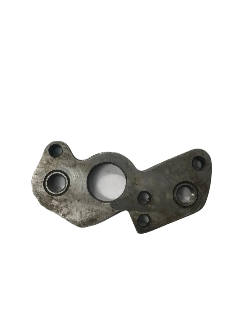

OptionalQty 1Row 130
PA 240

CP 5

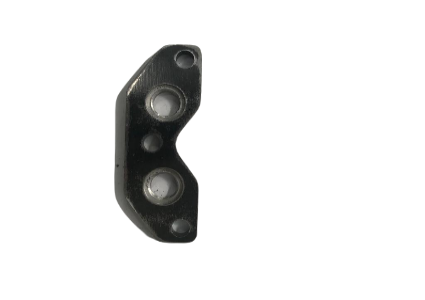

OptionalQty 1Row 131
PA 242

CP 5

No image
OptionalQty 1Row 132
EC 108

CAT SELENOID

No image
OptionalQty 1Row 133
PC 136

CAT SPEED SENSOR

No image
OptionalQty 1Row 134
PD 138

DENSO SPEED SENSOR 2 PIN / DENSO SPEED SENSOR 2 PIN

No image
OptionalQty 1Row 135
PD 140

DENSO SPEED SENSOR 3 PIN / DENSO SPEED SENSOR 3 PIN

KOMTESTDiesel Test Bench Manufacturer05 / 20
KOMTESTDiesel Test Bench Manufacturer
06

CR Pump Adapter Sets · Optional set

CB 18 OPTIONAL SET

4 listed items in this set group.
OptionalCB 18 OPTIONAL SET
OptionalQty 1Row 2
CF 114

050

OptionalQty 2Row 11
1/8 8 MM

1/8 8 MM

OptionalQty 1Row 12
1/8 8 MM

1/8 8 MM

OptionalQty 3Row 13
M 8 3CM

M 8 3CM

KOMTESTDiesel Test Bench Manufacturer06 / 20
KOMTESTDiesel Test Bench Manufacturer
07

CR Pump Adapter Sets · Optional set

CB 28 - CUMMINS OPTIONAL SET

6 listed items in this set group.
OptionalCB 28 - CUMMINS OPTIONAL SET
OptionalQty 1Row 2
CF 118

CB28 CUMMINS

OptionalQty 2Row 6
CR 414

14 X 16

No image
OptionalQty 1Row 9
CR 429

1 / 8

OptionalQty 2Row 17
1/8 8 MM

1/8 8 MM

OptionalQty 1Row 18
1/4 8 MM

1/4 8 MM

OptionalQty 4Row 19
M 10 3CM

M 10 3CM

KOMTESTDiesel Test Bench Manufacturer07 / 20
KOMTESTDiesel Test Bench Manufacturer
08

CR Pump Adapter Sets · Optional set

BOSCH CP 4 E OPTIONAL

5 listed items in this set group.
OptionalBOSCH CP 4 E OPTIONAL
OptionalQty 1Row 2
CF 103

F. / 050

OptionalQty 1Row 3
CK 205

K. / 022

OptionalQty 1Row 4
CK 207 A

K. / 025

OptionalQty 1Row 5
CK 207 B

K. / 025

OptionalQty 6Row 11
SET 11

M 8 3.5 CM

KOMTESTDiesel Test Bench Manufacturer08 / 20
KOMTESTDiesel Test Bench Manufacturer
09

CR Pump Adapter Sets · Optional set

BOSCH CP 5 OPTIONAL

14 listed items in this set group.
OptionalBOSCH CP 5 OPTIONAL
OptionalQty 1Row 2
CF112

F. / 109

OptionalQty 1Row 3
CK 216

F. / 035

OptionalQty 1Row 4
CK 220

F. / 035

OptionalQty 1Row 5
CK 244

S.S. / M 24

OptionalQty 1Row 7
CT 34-B

BOSCH 3

OptionalQty 2Row 8
CR 402

19 X 14

OptionalQty 2Row 9
CR 404

19 X 14

OptionalQty 2Row 10
CR 406

16 X 14

OptionalQty 4Row 11
CR 414

14 X 16

OptionalQty 4Row 12
CR 416

14 X 18

OptionalRow 14
PA 240

IN / OUT ADAPTOR

OptionalRow 15
PA 242

IN / OUT ADAPTOR

OptionalQty 4Row 20
SET 20

M 10 3CM

OptionalQty 6Row 21
SET 21

M 8 2CM

KOMTESTDiesel Test Bench Manufacturer09 / 20
KOMTESTDiesel Test Bench Manufacturer
10

CR Pump Adapter Sets · Optional set

CAT 9.3 E OPTIONAL SET

8 listed items in this set group.
OptionalCAT 9.3 E OPTIONAL SET
OptionalQty 1Row 2
CF 115

116

OptionalQty 1Row 3
CK 203

028

OptionalQty 1Row 4
CK 203-1

FLAT WASHER

OptionalQty 2Row 5
CR 413

9.16 U 14 X 1,5 M

OptionalQty 1Row 6
CR 415

3.4 U 14 X 1,5 M

OptionalQty 1Row 7
CR 417

1/8 8 MM ELBOW 1.2 U

OptionalQty 2Row 13
PC 158

Excel row 13

OptionalQty 3Row 14
M8 HEX SOCKET 4CM

M8 HEX SOCKET 4CM

KOMTESTDiesel Test Bench Manufacturer10 / 20
KOMTESTDiesel Test Bench Manufacturer
11

CR Pump Adapter Sets · Optional set

CAT OPTIONAL SET

6 listed items in this set group.
OptionalCAT OPTIONAL SET
OptionalQty 1Row 2
CF 116

052

OptionalQty 1Row 6
CR 420

M 12 - 1/8 8MM

OptionalQty 1Row 13
EC 108

CAT UNIVERSAL

OptionalQty 1Row 14
PC 136

SPEED SENSOR

OptionalQty 1Row 15
1/8 8 MM

1/8 8 MM

OptionalQty 3Row 16
M 8 3,5CM HEX SOCKET

M 8 3,5CM HEX SOCKET

KOMTESTDiesel Test Bench Manufacturer11 / 20
KOMTESTDiesel Test Bench Manufacturer
12

CR Pump Adapter Sets · Optional set

CUMMINS ISX 15 OPTIONAL SET

7 listed items in this set group.
OptionalCUMMINS ISX 15 OPTIONAL SET
OptionalQty 1Row 2
CF 123

135

OptionalQty 1Row 3
CK 217

065

OptionalQty 1Row 5
CR 401

20 X 14

OptionalQty 1Row 6
CR 414

14 X 16

OptionalQty 1Row 14
ES 114

Excel row 14

OptionalQty 3Row 15
10 X 1,5 M 3,5 CM

10 X 1,5 M 3,5 CM

OptionalQty 3Row 16
12 X 1,75 M 4CM

12 X 1,75 M 4CM

KOMTESTDiesel Test Bench Manufacturer12 / 20
KOMTESTDiesel Test Bench Manufacturer
13

CR Pump Adapter Sets · Optional set

DELPHI CUMMINS ISX OPTIONAL SET

7 listed items in this set group.
OptionalDELPHI CUMMINS ISX OPTIONAL SET
OptionalQty 1Row 2
CF 124

117

OptionalQty 1Row 3
CK 216

035

OptionalQty 1Row 4
CK 244

M 24 UNIVERSAL

OptionalQty 1Row 6
CR 406

16 X 14

OptionalQty 4Row 7
CR 414

14 X 16

OptionalQty 2Row 14
1/8 8 MM

1/8 8 MM

OptionalQty 4Row 15
M 10 3 CM

M 10 3 CM

KOMTESTDiesel Test Bench Manufacturer13 / 20
KOMTESTDiesel Test Bench Manufacturer
14

CR Pump Adapter Sets · Optional set

DELPHI DFP 5 - 8 OPTIONAL

9 listed items in this set group.
OptionalDELPHI DFP 5 - 8 OPTIONAL
OptionalQty 1Row 2
CF 122

110

OptionalQty 1Row 3
CK 206

022

OptionalRow 6
PA 244

IN / OUT ADAPTOR

OptionalQty 1Row 7
CR 406

16 X 14

OptionalQty 1Row 13
ES 114

UNIVERSAL

OptionalQty 1Row 14
1/8 8 MM

1/8 8 MM

OptionalQty 1Row 15
1/4 8 MM

1/4 8 MM

OptionalQty 3Row 16
M 10 3 CM

M 10 3 CM

OptionalQty 2Row 17
M 8 2 CM

M 8 2 CM

KOMTESTDiesel Test Bench Manufacturer14 / 20
KOMTESTDiesel Test Bench Manufacturer
15

CR Pump Adapter Sets · Optional set

DENSO HP 0 OPTIONAL SET

9 listed items in this set group.
OptionalDENSO HP 0 OPTIONAL SET
OptionalQty 1Row 5
CA 126

F.A. / 107-1

OptionalQty 1Row 7
CR 424

M 14 1/8 8 MM

OptionalQty 1Row 8
CR 445

Excel row 8

OptionalQty 2Row 12
ED 116

DENSO 1

OptionalQty 1Row 14
PD 140

DENSO S 2

OptionalQty 1Row 15
SET 15

1/8 8MM

OptionalQty 1Row 16
SET 16

1/4 8MM

OptionalQty 2Row 17
SET 17

M8 HEX SOCKET 9 CM

OptionalQty 2Row 18
SET 18

M8 HEX SOCKET 3,5 CM

KOMTESTDiesel Test Bench Manufacturer15 / 20
KOMTESTDiesel Test Bench Manufacturer
16

CR Pump Adapter Sets · Optional set

DENSO HP 2 OPTIONAL SET

8 listed items in this set group.
OptionalDENSO HP 2 OPTIONAL SET
OptionalQty 1Row 5
CA 128

F.A. / 068-2

OptionalQty 2Row 6
CA 128-1

M 14

OptionalQty 1Row 7
CT 38-Y

DENSO T

OptionalQty 2Row 8
CT 40DT

DENSO ST

OptionalQty 1Row 12
ED 116

DENSO 1

OptionalQty 1Row 13
PD 124

DENSO S 1

OptionalQty 2Row 14
SET 14

M8 HEX SOCKET 9 CM

OptionalQty 2Row 15
SET 15

M8 HEX SOCKET 3,5 CM

KOMTESTDiesel Test Bench Manufacturer16 / 20
KOMTESTDiesel Test Bench Manufacturer
17

CR Pump Adapter Sets · Optional set

DENSO HP 5 E OPTIONAL SET

8 listed items in this set group.
OptionalDENSO HP 5 E OPTIONAL SET
OptionalQty 1Row 2
CF 105

F. / 50

OptionalQty 1Row 3
CK 212-2

K. / 25

OptionalQty 1Row 5
CR 406

16 X 14

OptionalQty 1Row 7
CR 419

12 X 1,5 - 14 X 1

OptionalQty 1Row 8
CR 421

1/8 8 MM 18 X 1 M

OptionalQty 1Row 9
CR 424

1/8 8MM ELBOW M 14 X 1

StandardQty 1Row 14
ED 120

DENSO 3

OptionalQty 3Row 15
SET 15

M8 3 CM

KOMTESTDiesel Test Bench Manufacturer17 / 20
KOMTESTDiesel Test Bench Manufacturer
18

CR Pump Adapter Sets · Optional set

DENSO HP 6 E OPTIONAL SET

7 listed items in this set group.
OptionalDENSO HP 6 E OPTIONAL SET
OptionalQty 1Row 2
CF 117

F. / 50

OptionalQty 1Row 3
CK 212 - 6

K. / 25

OptionalQty 2Row 5
CR 406

16 X 14

OptionalQty 1Row 7
CR 423

M 18 X 1,5 M ELBOW 1/8 8MM

OptionalQty 1Row 8
CR 424

1/8 8MM ELBOW M 14 X 1,5 M

StandardQty 2Row 13
ED 120

DENSO 3

OptionalQty 4Row 15
SET 15

10X1,5 M 3.5 CM

KOMTESTDiesel Test Bench Manufacturer18 / 20
KOMTESTDiesel Test Bench Manufacturer
19

CR Pump Adapter Sets · Optional set

SIEMENS DHP 1.1 E OPTIONAL SET

6 listed items in this set group.
OptionalSIEMENS DHP 1.1 E OPTIONAL SET
OptionalQty 1Row 2
CF 107

50

OptionalQty 1Row 3
CK 211

020

OptionalQty 1Row 4
CR 406

M 16 X 14

StandardQty 1Row 7
EB 104

Excel row 7

OptionalQty 1Row 8
M 10 3 CM

M 10 3 CM

OptionalQty 3Row 9
M 8 3.5 CM

M 8 3.5 CM

KOMTESTDiesel Test Bench Manufacturer19 / 20
KOMTESTDiesel Test Bench Manufacturer

End of catalogue

Diesel testing equipment for professional workshops.

Common Rail TestUnit Test BenchesMechanical Test Benches
